Mini Screw-in Projector

The Mini Screw-in Projector TRYLED® It is a compact spotlight designed to illuminate swimming pools, with an understated, modern finish. It is suitable for swimming pools of concrete, polyester or liner, and stands out for its installation versatility: it can be easily fitted using 2” wall-penetrating fittings” or by using the niche included, with the option of adapting it to a “dichroic” type niche, as appropriate.

It incorporates technology SMD LED from 10W with 600 lumens, providing efficient lighting for areas where ambient lighting is required or for specific features such as steps, benches, spas or small swimming pools.

Practical and adaptable installation

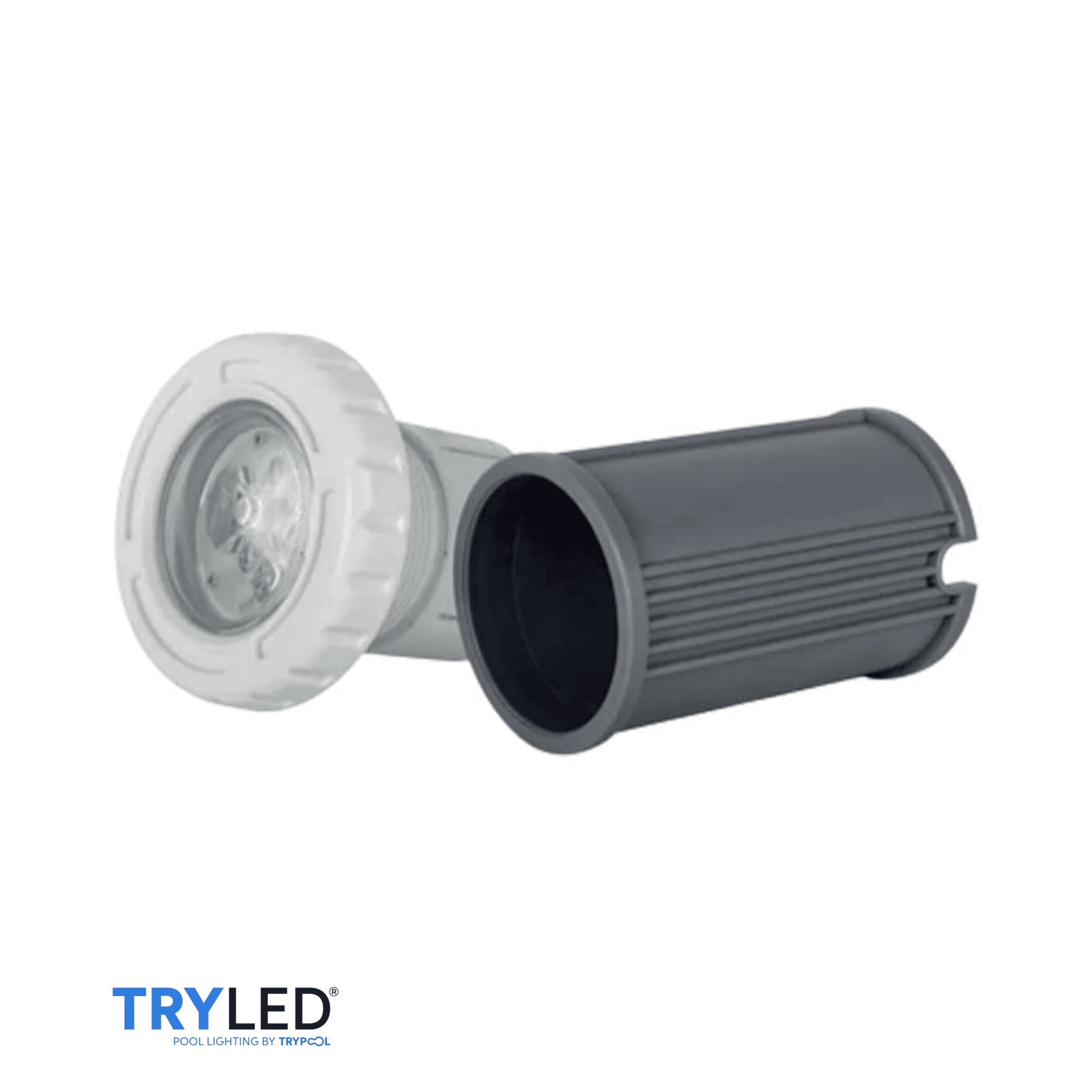

Its compact design allows for a range of installation options. For one thing, it can be installed in 2″ wall-penetrating fittings. On the other hand, it can also be fitted with the mini LED housing (spare part available), making it easier to adapt the product when a specific fitting is required.

Available versions: white, warm and RGB

You can choose the type of lighting depending on the atmosphere you want to create:

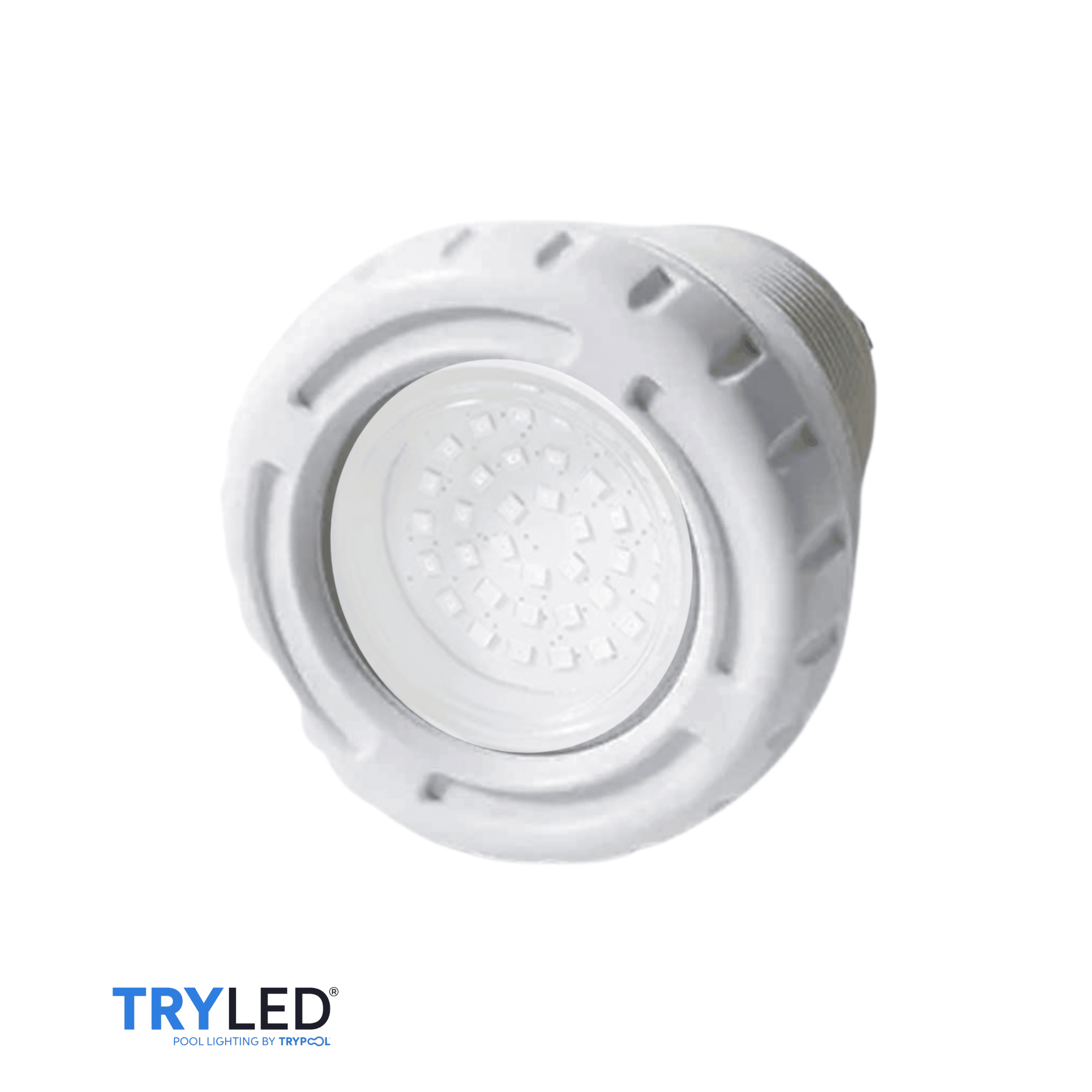

• Cool white 6,400K

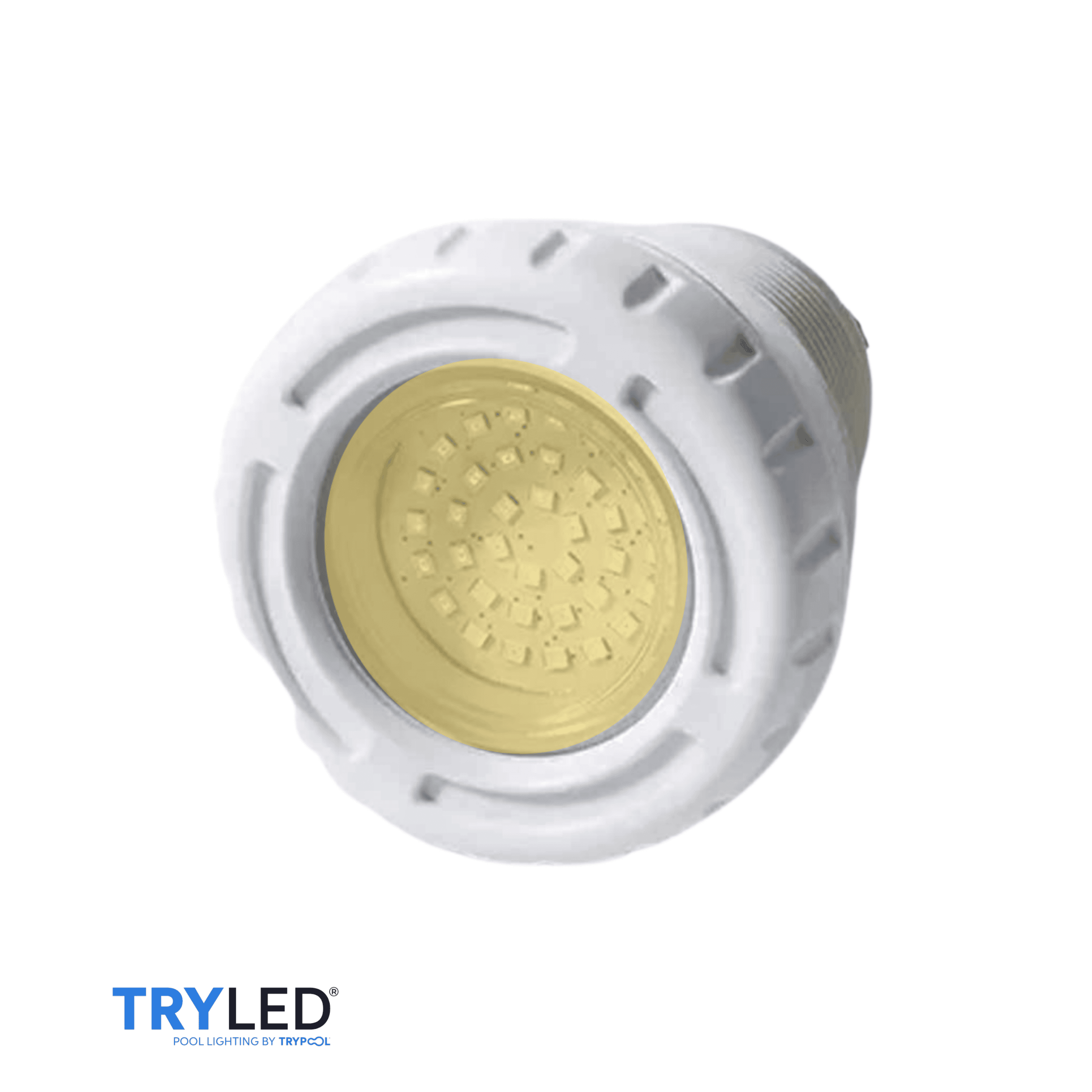

• Warm white 3,000K

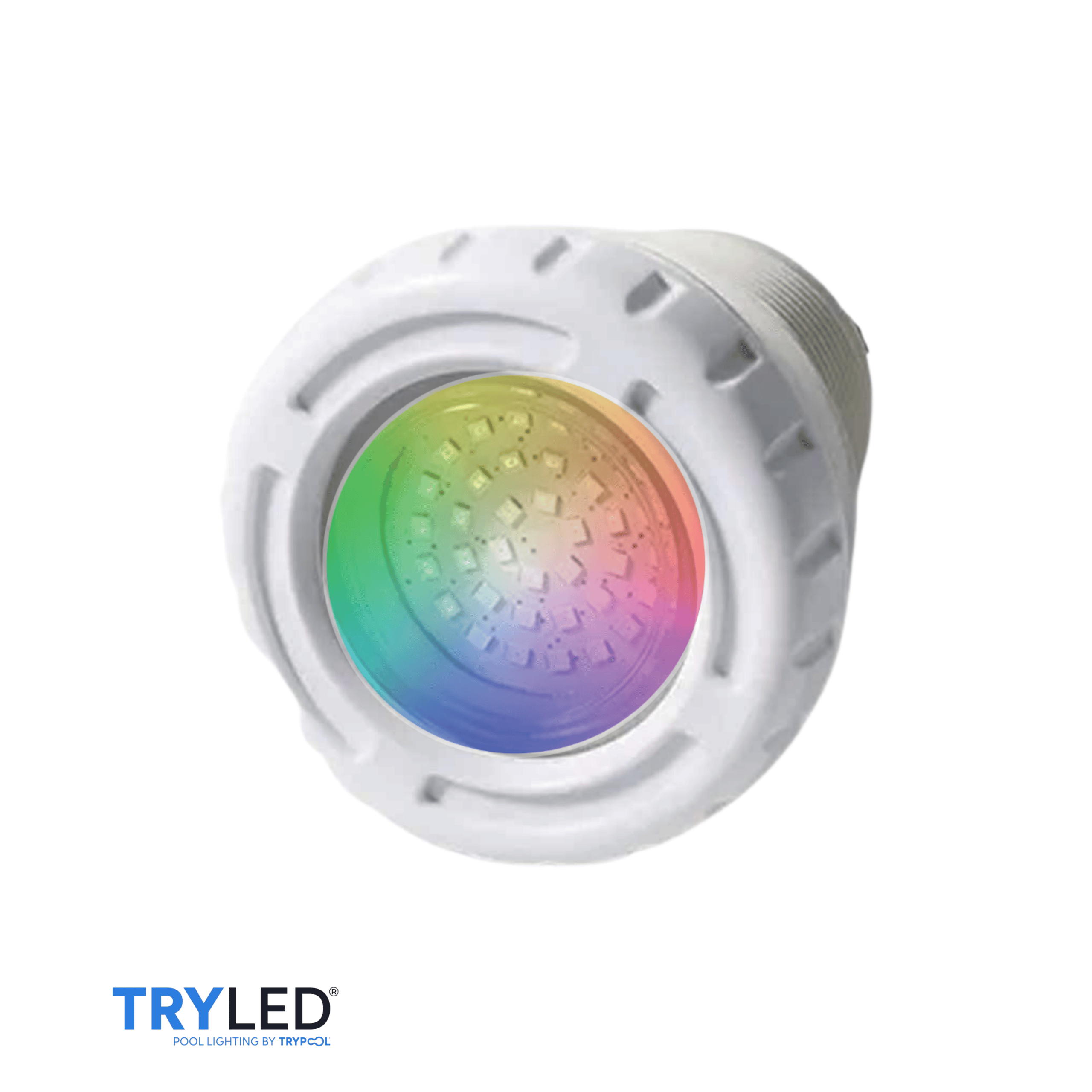

• 2-wire RGB

• 4-wire RGB (12 VDC): version prepared for home automation and channel-based control (RGB)

Furthermore, it can be combined with lighting controllers (remote control), and even with a control WiFi to control brightness, colours and scenes from your smartphone.

Strength and durability

The projector features anti-UV treatment for greater resistance to sun exposure. It is designed for use in swimming pool environments and offers a service life of over 50,000 hourswith a recommended maximum depth of 2 m y operating temperature below 40 ºC.

Key technical specifications

• Power: 10W

• Luminous flux: 600 lm

• Voltage: 12 VAC (white/warm/RGB 2-wire) and 12 VDC (4-wire RGB)

• Service life: > 50,000 h

• Recommended depth: max. 2 m

• Operating temperature: < 40 °C

• Installation: 2” wall-penetration or recessed fitting included

• Design: compact mini

If you need a small, versatile spotlight with an RGB option (including a version for home automation), the TRYLED® Mini Screw-in Spotlight It is a very comprehensive solution for spot or ambient lighting in swimming pools.

Spare parts available

• Mini LED housing (code:. 104001)

• Glue applicator (code:. 104002)

• Silicone seals (code:. 104003)
